X2Go Quick Guide

Introduction

X2Go is an open source remote desktop tool to mainly access Linux computers. It is essentially a wrapper for X sessions, and is more suited for lower-bandwidth connections.

X2Go Site

In Computing Science, it allows you to remotely access the graphical desktop of a CS Linux machine.

(For work that can be done completely on the command line, you do not need X2Go.)



Installation

In particular, clients are available to connect from Mac OS X, Windows, and Linux.

Getting X2Go

Installing X2Go


Setup

When creating a new session, certain fields in the Session tab are important.

Session name:
enter a descriptive name

Host:
for undergraduates, ohaton.cs.ualberta.ca
for researchers, pipestone.cs.ualberta.ca

These are suggested hosts, but there are others in the cs.ualberta.ca domain that can be used, including CS Undergrad Hosts and CS Research Hosts in labs and offices.

Login:
your CCID

Session type:
choose XFCE

Something like this …

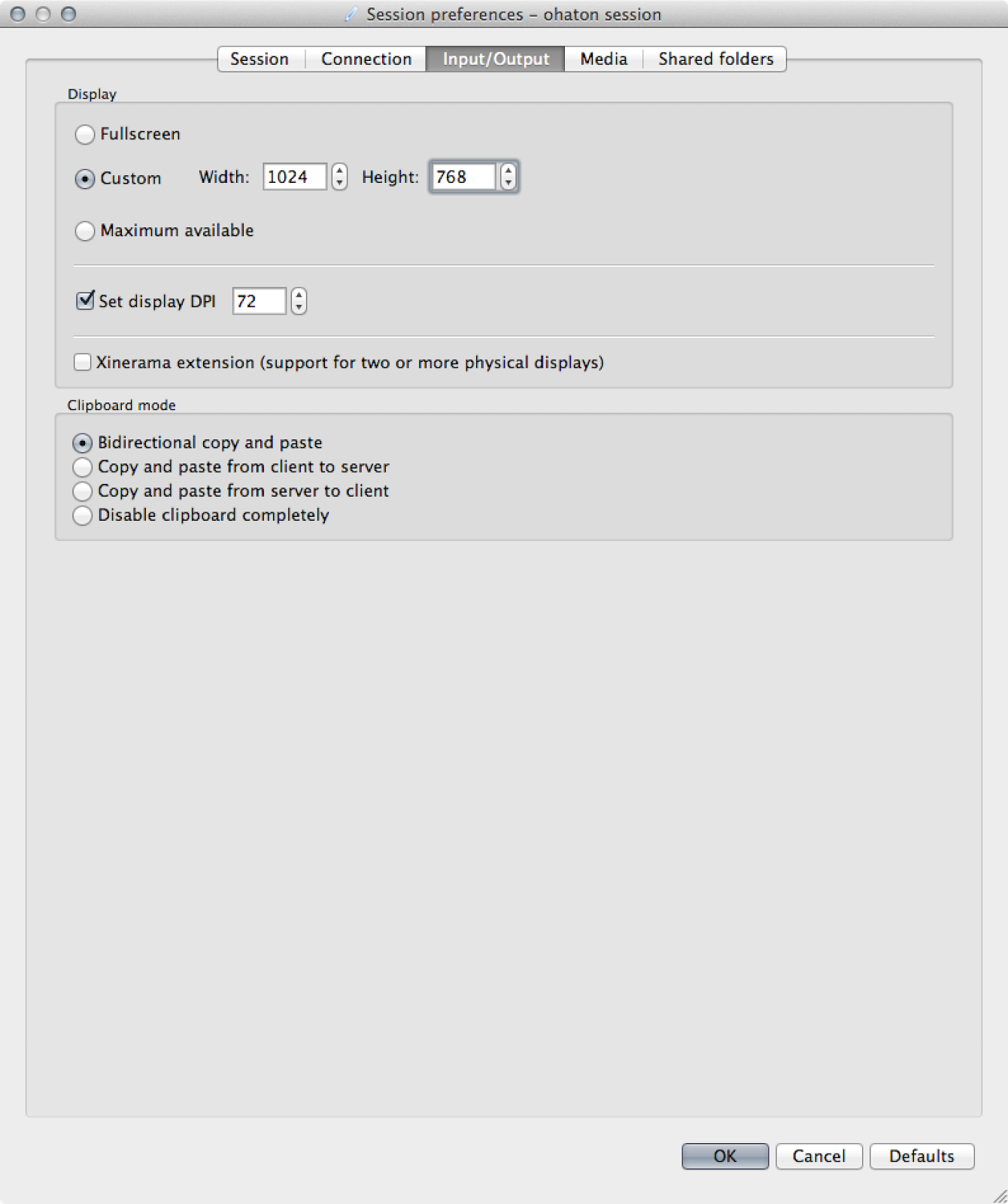

You may wish to adjust your display size in the Input/Output tab.



Using

After the session preferences are set up …


Click the round-rectangular card for the session at the top right.


Login as usual.

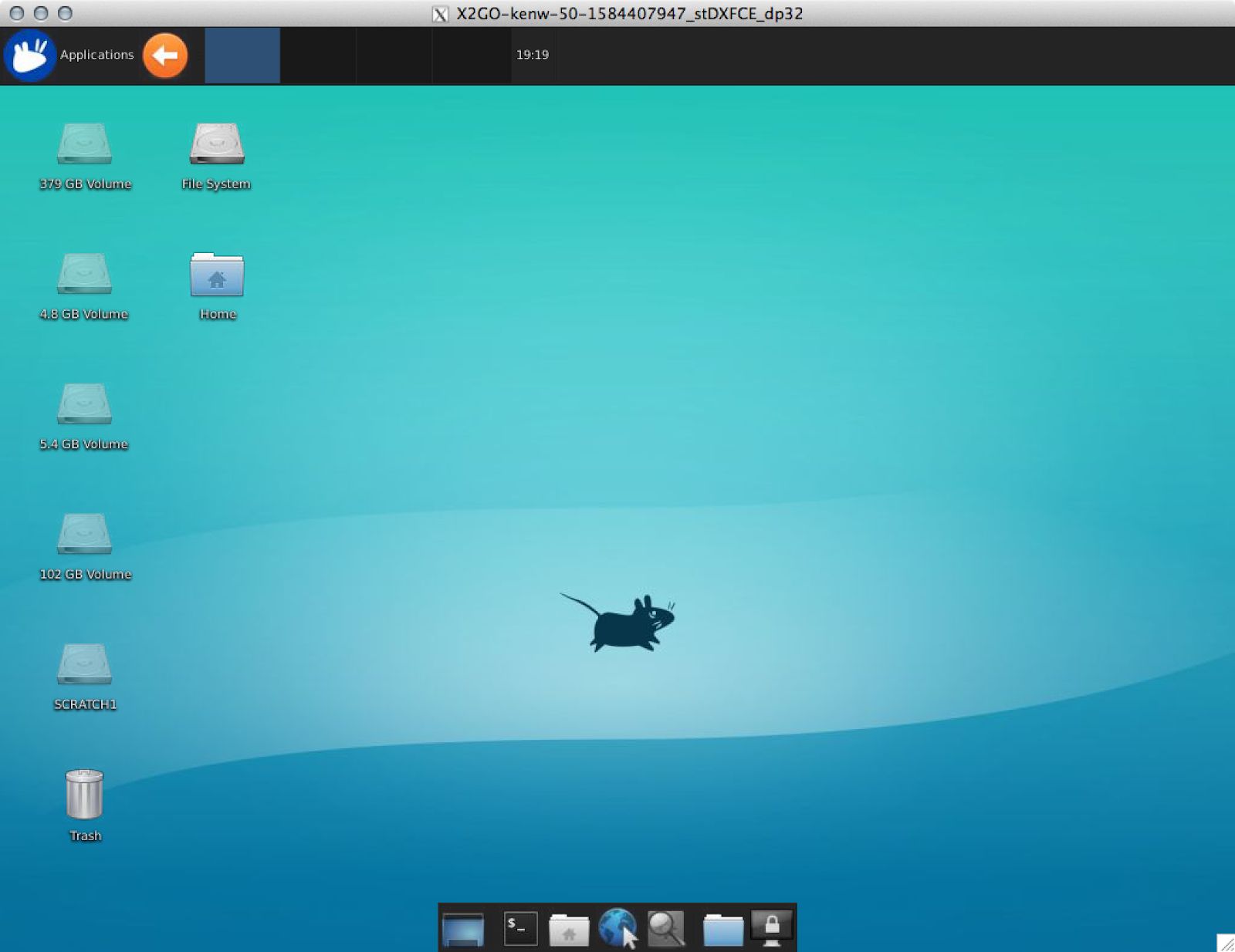

Then after the connection, the desktop should appear.


When done, remember to log out. Please avoid leaving sessions hanging.

Note that you are using shared resources. With potentially many users connecting, please be considerate and try not to be wasteful. Focus on what you need the desktop to do.


Reconnecting to an already active session

If you do disconnect (either on purpose or due to a connectivity issue) as long as you connect to the same host as you did previously it should re-attach to the same session and whatever you had left running should still be available to continue working and you can then log out properly rather than leaving the session hanging.


Problems?

If you are using macOS on your own machine, make sure you have installed XQuartz, logged out, and logged back in.



CS Undergrad Lab Hosts

CSC105: ub01 - ub08
CSC121: uc01 - uc16
CSC125: ud00 - ud26
CSC129: ue00 - ue26
CSC153: uf00 - uf25
CSC159: ug00 - ug34
CSC219: ui00 - ui22



CS Research Hosts

Please ensure you have the appropriate permission from the machine owners to use these machines.

Bonanza
Coronation
Innisfree
Pipestone

Grad Office Machines:

Grd101a Grd108 Grd121 Grd137 Grd151 Grd211b Grd323f
Grd101b Grd109 Grd123 Grd138 Grd152 Grd211c Grd323g
Grd102a Grd111 Grd124 Grd139 Grd153 Grd323a Grd323h
Grd102b Grd113a Grd128a Grd140 Grd154a Grd323b Grd418
Grd105 Grd113b Grd134 Grd141 Grd154b Grd323c Grd420
Grd106 Grd117 Grd135 Grd143b Grd155b Grd323d Grd422
Grd107 Grd120 Grd136 Grd150 Grd211a Grd323e Grd424
